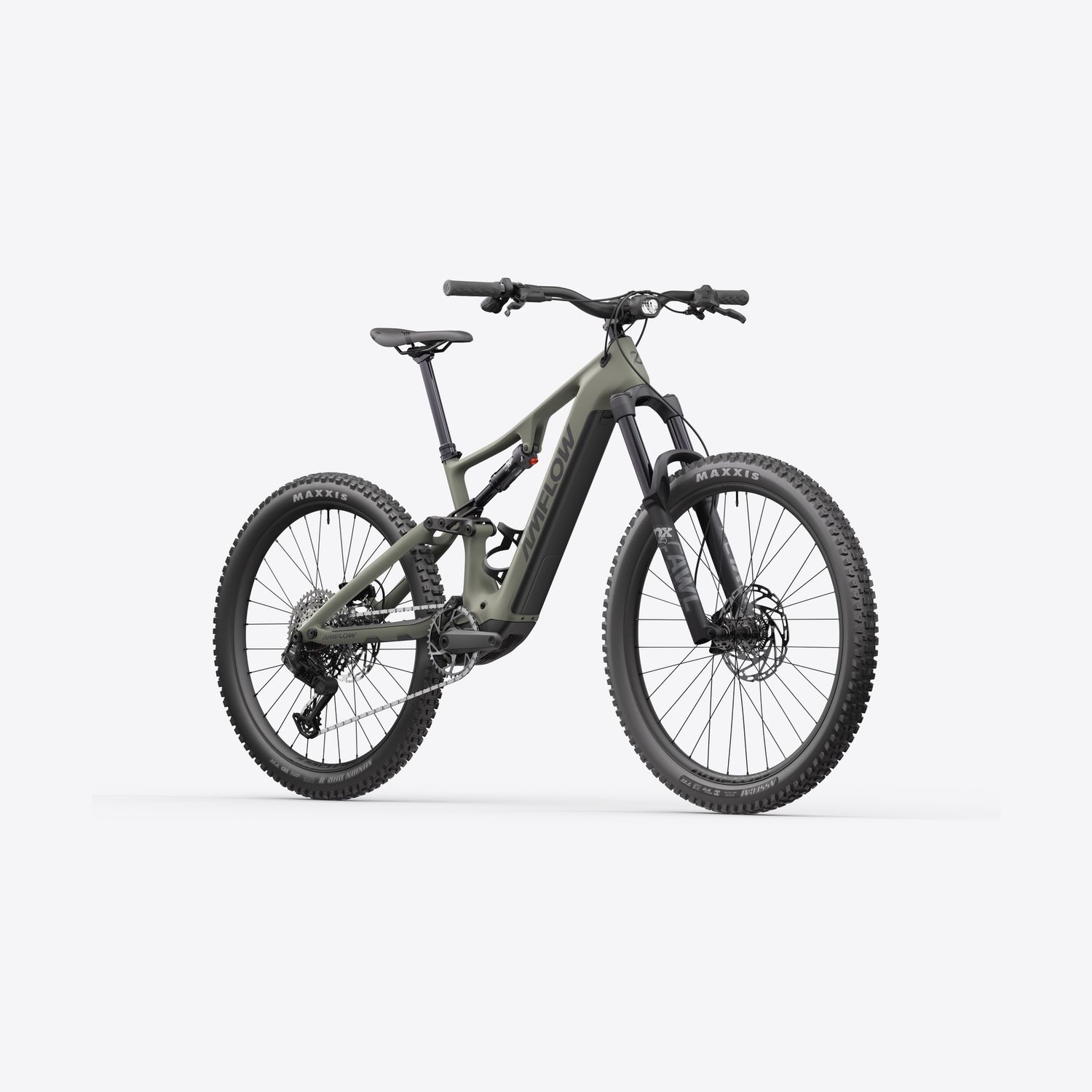

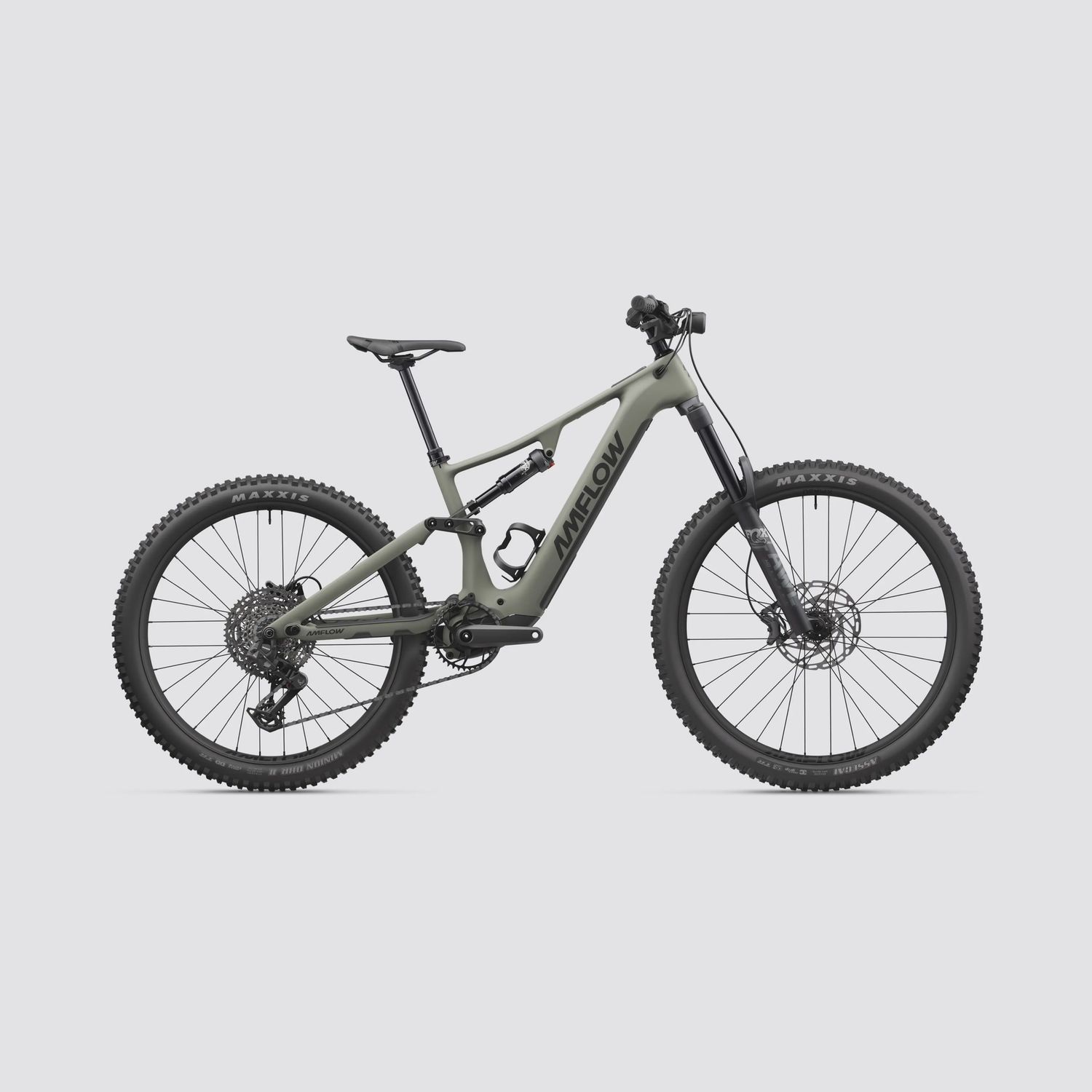

Amflow PR Carbon

Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to 150N·m ^[1] of torque and 1500W ^[1] of peak power on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.

Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations ^[2]. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

FRAME:

Carbon Moss Green

FRAME MATERIAL:

Carbon

FORK BRAND:

Fox

FORK:

2027 FOX AWL HD Sport, 160mm travel,| RAIL 2.0 damper, Sweep/LSR adjustment, 15 x110mm, 44mm offset

FORK TRAVEL:

160 mm

REAR SHOCK:

2027 FOX Float Rhythm, custom tune, LSR adjustment, 210 × 55mm, air shock

MOTOR:

Avinox

MOTOR CONTROLLER:

Avinox Wireless Controllers

DISPLAY:

Avinox Screen: 2-inch OLED Control Display

DRIVE UNIT:

Avinox M2 (110 Nm)

BATTERY:

Avinox 800 Wh Battery

RANGE EXTENDER:

N/A

CHARGER:

Avinox Charger: 4A/168W

WHEEL SIZE:

27.5 R 29 F

WHEELS:

Front Rim: Alloy, 29", 30mm inner width, 32H, tubeless ready Rear Rim: Alloy, 27.5", 30mm inner width, 32H, tubeless ready

TYRES:

Front: Maxxis Assegai, 29.0 x2.50 M356RU 3C MaxxGrip/EXO+/TR Rear: Maxis DHR II, 27.5 × 2.50 M327RU New MaxxTerra/DD/TR

DROPPER SEATPOST:

Yes

SEATPOST:

Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

SADDLE:

Amflow Mountain Saddle

CRANKSET:

Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

HANDLEBAR:

Amflow Enduro Alloy Handlebar 40mm Rise, 800mm Width, 35mm Diameter 5-degree upsweep, 9-degree backsweep

STEM:

Amflow Mountain Bike Split Stem Length: 35mm Clamping Diameter: 35mm

GRIPS:

Amflow Enduro Grip 2 Lock-on Grips

SHIFTERS:

SRAM AXS Pod Controller

WIRELESS SHIFTING:

Yes

BRAKE BRAND:

Tektro

HYDRAULIC BRAKES:

Yes

BRAKES:

Tektro Hydraulic Disc Brake

REAR DERAILLEUR:

SRAM S1000 Eagle Transmission Derailleur

CHAIN:

SRAM Eagle 70 Transmission Flattop Chain

NUMBER OF GEARS:

12 Speed

EXTRAS:

N/A

TYPE OF BIKE:

Trail / All Mountain

DESIGNED FOR:

Exploring new trails or going on longer rides where you encounter varied terrain. More relaxed geometry than a Cross Country bike and an excellent balance of climbing ability and downhill capability making it a great all-rounder

IDEAL TERRAIN:

Singletrack trails with some technical descents. Up to and including red routes & black routes at trail centres.

PLEASE NOTE:

Please note that Amflow reserve the right to make changes to the information provided for this bike at any time without notice. this can include the equipment, specifications, models, colours, and materials.
