Frame
Alloy Trail Dual suspension Frame. True single pivot design, 140mm Rear Travel with 185x52.5mm Trunnion Shock. 30x8mm hardware. BSA Bottom Bracket. Boost 148
Free shipping when you spend over $150, T&C'S
2025 Silverback SE Trail 10
$1 726.36
BIRTHDAY SALE
was $2 271.82 Save 24%
Colour
Please choose
Size
Please choose
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

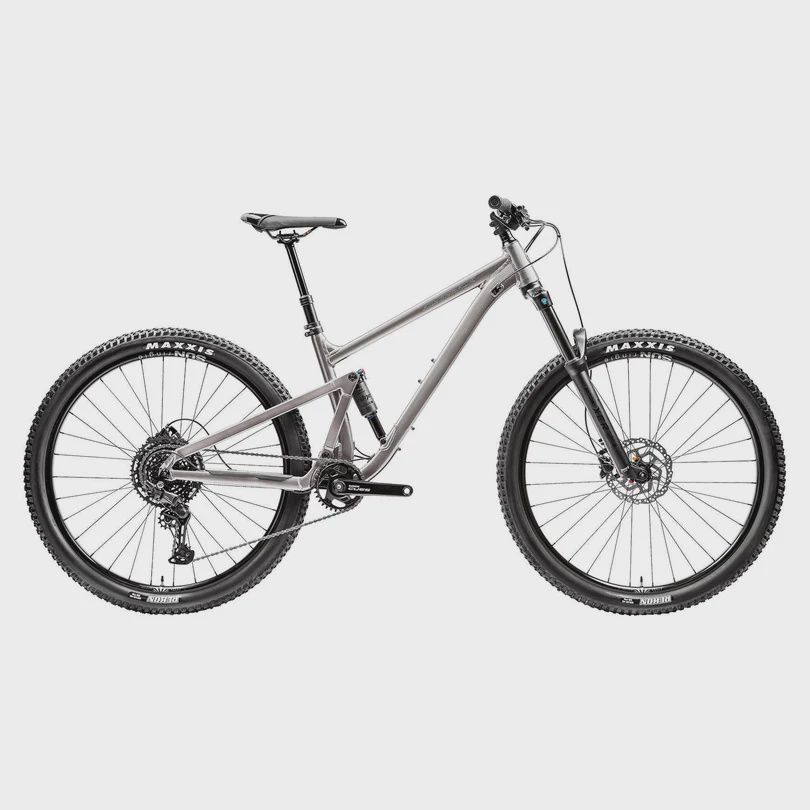

2025 Silverback SE Trail 10
Product Details
Brand: Silverback
SE:Series Trail is an nimble and fast dual suspension trail platform. The aluminium frameset encompasses a solid rear triangle with a more forgiving front triangle tubeset, giving excellent ride feel, control and all day trail riding comfort. The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle. Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance. Frame allows for two small water bottles to be carried on the frame, one inside the front triangle and one below the down tube. Single pivot rear suspension design provides excellent tracking, trail feedback and longevity of pivots.
FRAMESET
Headset
Semi-Integrated Threadless Headset, ZS44/28.6 | ZS56/39.8
Frame Axle Spacing
148x12mm
Axle Specification
181x12mm P1.75
Hanger Type
HANGER 3
SUSPENSION
Fork
29": SR Suntour Durolux 36 Air, 150mm Travel, Boost, RC2 low & high speed compression & rebound adjust (Australia only)
29 & 27.5": SR Suntour XCR34 Air, 140mm Travel, Boost, RC2 low & high speed compression & rebound adjust (International markets)
Fork Travel
150/140mm
Rear shock
Suntour RS24 EdgeX, 2CR, Custom Tuned, Trunnion, 185x52.5mm
Rear Suspension Travel
140mm
Shock Mounting
Body: Trunnion, M10x54mm
Shaft: Standard, 8x30mm
Eye-to-Eye x Stroke
185x52.5mm
WHEELS
Wheelset
SUNringlé Custom Wheelset
Hubs
F: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm
R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
Rims
F: SUNringlé 329, Sleeved, STR Tubeless
R: SUNringlé 329, Sleeved, STR Tubeless
Tyres
F: Maxxis Rekon 29x2.4"
R: Maxxis Rekon 29x2.4"
Max Tyre Size
2.5"
DRIVETRAIN
Crankset
Shimano FC-U4000-1 CUES, 32T, 170mm
Max Chainring Size
32T
Bottom Bracket & Type
BSA73
Shifter(s)
R: Shimano SL-U6000-10R CUES 10-Speed Right Shift Lever, Rapidfire Plus w/o Optical Gear
Rear Derailleur
Shimano RD-U6000 CUES, 10/11 Speed
Cassette
Shimano CS-LG300-10 CUES 10-Speed, 11-48T
Chain
Shimano CN-LG500 LG, 9/10/11 Speed
BRAKES
Brakes
Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Rotors
Shimano SM-RT10 Rotor, 180mm, Centre Lock
COCKPIT
Grips
SURFACE Double Density Lock-On
Handlebar
SURFACE Alloy Handlebar, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise
Stem
SURFACE Alloy, 31.8mm, Extension: 45mm, Rise: 3°
Saddle
SURFACE Ergo
Seat Post
SURFACE Dropper Post, Remote Lever, Ø30.9mm, S:100/M:125/L:150/XL:170mm Travel
Seatpost Clamp
SURFACE Alloy w/Steel Bolt
Pedals
Not Included
WEIGHT
Bike Weight
16.7 Kg
RIDER WEIGHT LIMIT
120kg - combined weight of bike and rider (including all kit).
